**Automatic Metal Detector & Remover**

Arduino Code:

const int ProximitySensor = 2; // proximity sensor connected to pin 2
const int Motor = 4; // Motor is connected to pin 4
const int Coil = 7; // Magnetic coil is connect to pin 7

int ProximitySensorStatus(digitalRead); // sensor will give digital output.
int MotorStatus(digitalWrite); // motor will takes digital input
int CoilStatus(digitalWrite); // coil will takes digital input

void setup() {
  pinMode(ProximitySensor, INPUT); // proximity sensor connected as input of arduino
  pinMode(Motor, OUTPUT); // motor is connected as out of arduino
  pinMode(Coil, OUTPUT); // Magnetic Coil connected as output of arduino
  // put your setup code here, to run once:

}

void loop() {
  if (ProximitySensorStatus == HIGH); // if the proximity sensor detects the Metal body i.e. High
  {digitalWrite(Motor, LOW); // motor will stop
  digitalWrite(Coil, HIGH); // Magnetic Coil will be get Energised
  delay(ProximitySensorStatus); // the operation of Stop the Motor & On the coil upto the change in Proximity Sensor value i.e. Sensor value is Low
  }

  // put your main code here, to run repeatedly:

}

Proximity Sensor (Inductive type)

Componets :

IR sensor (Inductive Type)
MOTOR
Conveyor belt
ring bearings
electromagnet

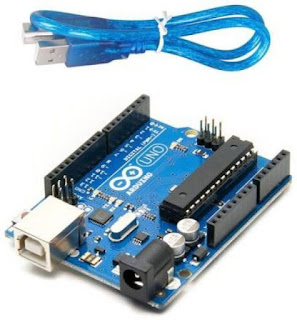

Arduino UNO

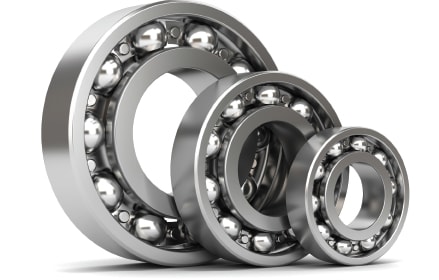

Ring Bearings

Conveyor Belt set

Arduino UNO
